3 Stack
Parking

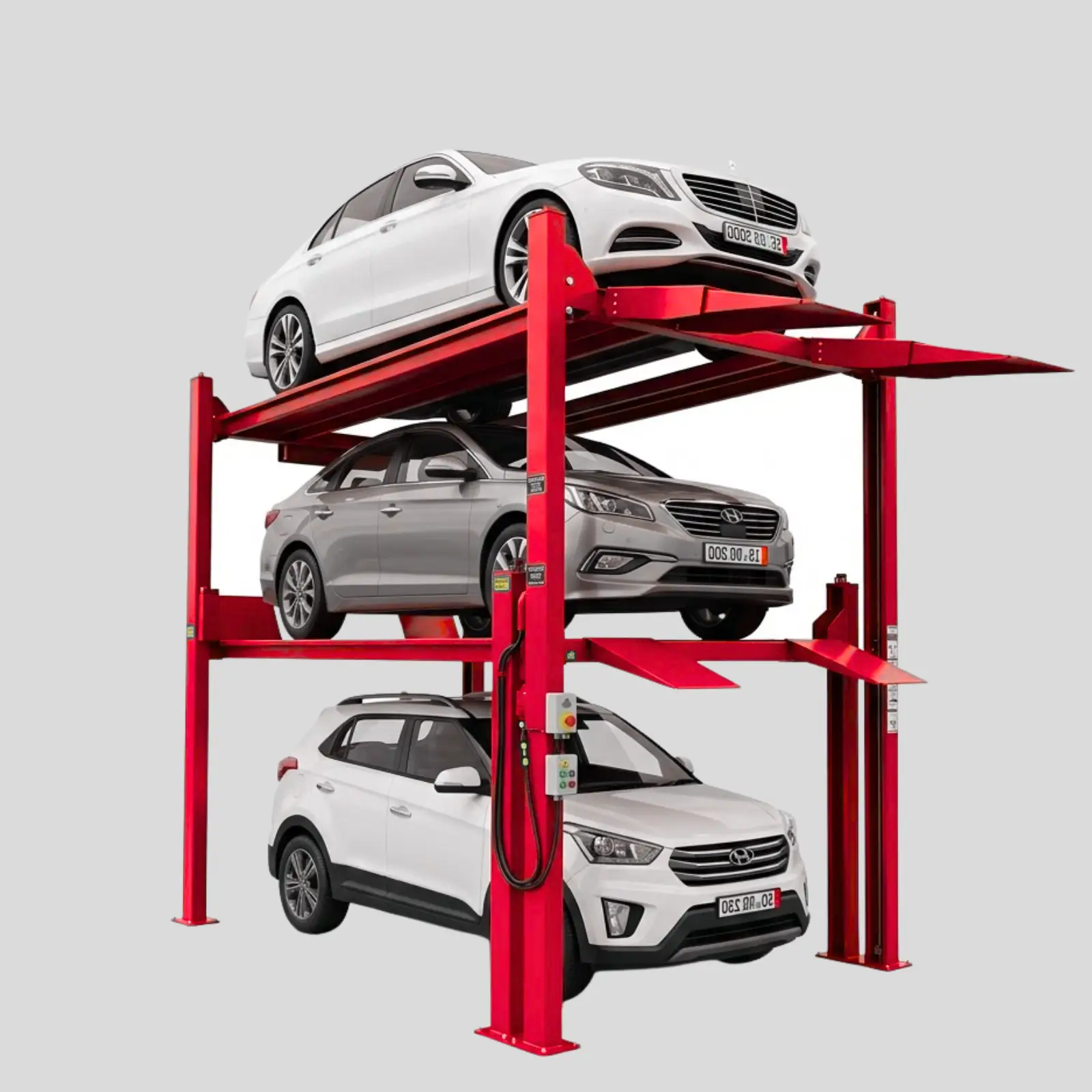

The 3 Stack Parking System by AUTOGRO triples your car parking capacity by stacking three vehicles vertically in the space of one. Using a twin-post hydraulic frame with two independently operated platforms, this system is the ideal solution for facilities that need maximum density without expanding their footprint.
Designed for commercial complexes, hospitals, hotels, and high-density residential buildings — the 3 Stack system delivers the highest vertical capacity available in a single-bay configuration.
Why Choose 3 Stack Parking?
Key Benefits of 3 Stack Parking
Technical Specifications
| Model | AG-2000 | AG-2400 | AG-2800 |
|---|---|---|---|
| Vehicles parked per unit | 2 | 2 | 2 |
| Rated capacity | 2000 | 2400 | 2800 |
| Available car length | 40000mm | 4000mm | 3800mm |
| Available car width | 2300mm | 2300mm | 2290mm |
| Drive mode | Hydraulic cylinder + Chains | Hydraulic cylinder + Chains | Hydraulic cylinder + Chains |
| Operation | Key switch | Key switch | Key switch |
| Lifting speed | <55s | <55s | <55s |
| Descending speed | <45s | <45s | <45s |
| Power supply | 220V / 2HP / 3pH Power | 220V / 2HP / 3pH Power | 220V / 2HP / 3pH Power |
| Finishing | Powder coating | Powder coating | Powder coating |
| Model | AG-2000 | AG-2400 | AG-2800 |
|---|---|---|---|
| Pump motor power | 1.75 Kw | 1.75 Kw | 1.75 Kw |
| Hydraulic cylinder | Two stage type | Two stage type | Two stage type |
| Hydraulic oil | 20 Liter (68) | 20 Liter (68) | 20 Liter (68) |
Safety Features
Mechanical locks engage automatically the moment the platform reaches its target height — securing it in place with zero reliance on hydraulic pressure. Even in a total power failure, the vehicle remains locked at height.
Triggers the moment the lift platform reaches its upper travel boundary, commanding the pump to cut instantly. Eliminates all risk of over-travel, structural stress on the frame, or vehicle contact with the ceiling.
Sensors continuously monitor load, speed, and motion patterns throughout every cycle. On detecting any abnormality — overload, irregular movement, or hydraulic fault — the cylinder halts operation within milliseconds.
High-grade steel and galvanized iron sheet construction, engineered with full load-distribution analysis and stress-point reinforcement at every joint. Certified to meet all relevant structural and vehicle safety standards.
